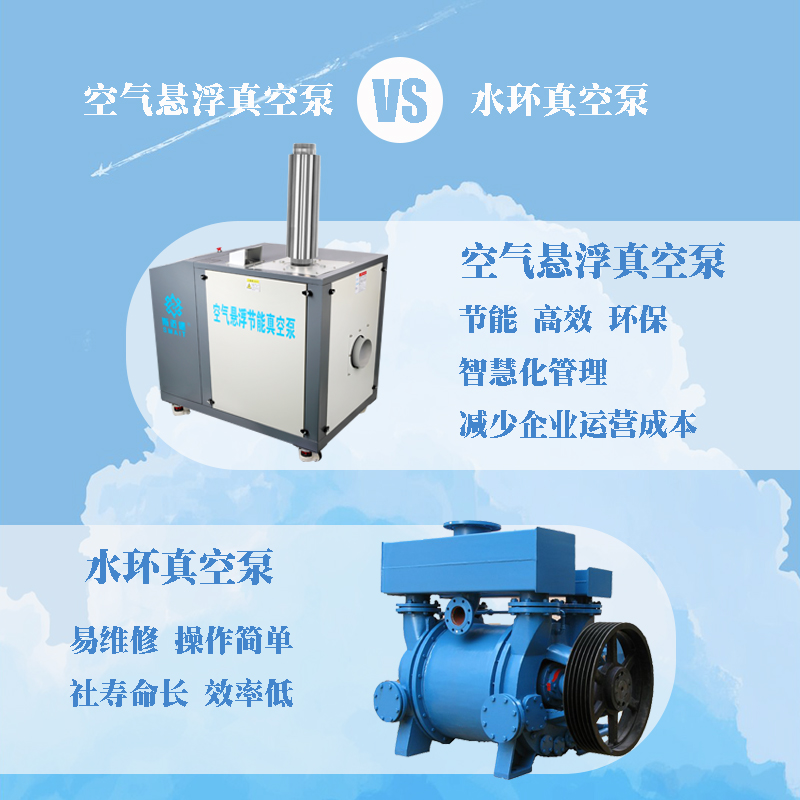

The working principle of the Smed air suspension vacuum pump is based on the principles of aerodynamics. This design makes the air suspension vacuum pump efficient, energy-saving, and low-noise. Compared with the water ring vacuum pump, the characteristics of the water ring vacuum pump are: simple structure, easy maintenance, but lower efficiency. The following is a specific analysis
1. Working principle
& nbsp; Smed air suspension vacuum pump: uses magnetic levitation technology to achieve contactless rotation, thereby reducing friction losses and improving operational efficiency.
& nbsp; Water ring vacuum pump: It draws gas through the water ring formed between the impeller and the pump body, and involves the circulation of water during the working process.
2. Structural features
& nbsp; Smed air suspension vacuum pump: usually has a simpler structure, does not require a lubricating oil system, and is easier to maintain.
& nbsp; Water ring vacuum pump: The structure is relatively complex and requires regular replacement of the working fluid, which may affect performance due to contamination of the working fluid.
3. Application features
& nbsp; Smed air suspension vacuum pump: suitable for applications that require high vacuum and low energy consumption, such as semiconductor manufacturing, food processing, etc.
& nbsp; Water ring vacuum pump: Due to its ability to handle gases containing dust or water, it is widely used in industries such as chemical and papermaking.
4. Corrosion resistance of equipment
& nbsp; Smed air suspension vacuum pump: Due to the absence of liquid, it is insensitive to acidic gases and will not cause corrosion problems due to the dissolution of acidic gases in water.
& nbsp; Water ring vacuum pump: When there is acidic gas in the system, it dissolves in water to form acidic liquid, causing corrosion to the equipment.
5. Impact of shutdown due to malfunction
& nbsp; Smed air suspension vacuum pump: In the event of a malfunction and shutdown during operation, it will not cause product contamination or damage to the Roots pump.
& nbsp; Water ring vacuum pump: In case of malfunction and shutdown during operation, it may cause product contamination or damage to the Roots pump.
6. Energy saving and consumption reducing effect
& nbsp; Smed air suspension vacuum pump: usually has a higher energy efficiency ratio and can provide higher vacuum degree at lower energy consumption.
& nbsp; Water ring vacuum pump: Although it performs well in certain applications, its overall efficiency is relatively low.
Overall, the Smed air suspension vacuum pump may be superior to water ring vacuum pumps in certain aspects, especially in applications that require high efficiency and low energy consumption. However, water ring vacuum pumps still have their unique advantages when dealing with specific types of gases, such as those containing dust or water. Therefore, whether it can be replaced depends on specific application requirements and work environment. When choosing a vacuum pump, multiple factors should be considered comprehensively to ensure the selection of the most suitable equipment for specific needs.
